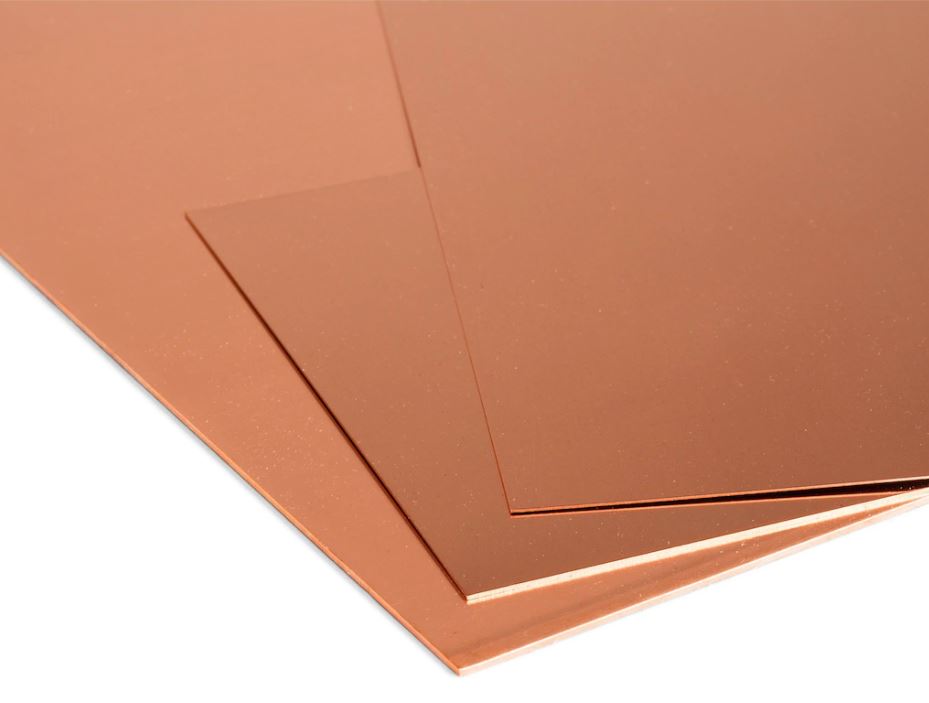

Copper Sheet
Gemciler Güven Metal / Copper Sheet
General Features
Copper strips are generally used in the production of energy cables and installation cables in the energy, communication, construction, automotive, and electronics sectors, as well as in the production of white goods and electrical household appliances, transformers, transformers, and electric motors. It complies with TSE EN 13599, TSE EN 1652, DIN 40500, DIN 1791 standards.
Alloy Types
Cu-ETP, Cu-HCP, Cu-PHC, Cu-DLP, Cu-DHP, Cu-SN, Cu-SN01
Our Production Dimensions
| Thickness | Width | Hardness | ||
|---|---|---|---|---|
| Min | Max | Min | Max | Value |
| 0.40 mm | 15 mm | 80 mm | 1000 mm | F20 (45 - 65 hv) F25 (65 - 95 hv) F30 (90 - 110hv) F37 (110 hv and above) |
